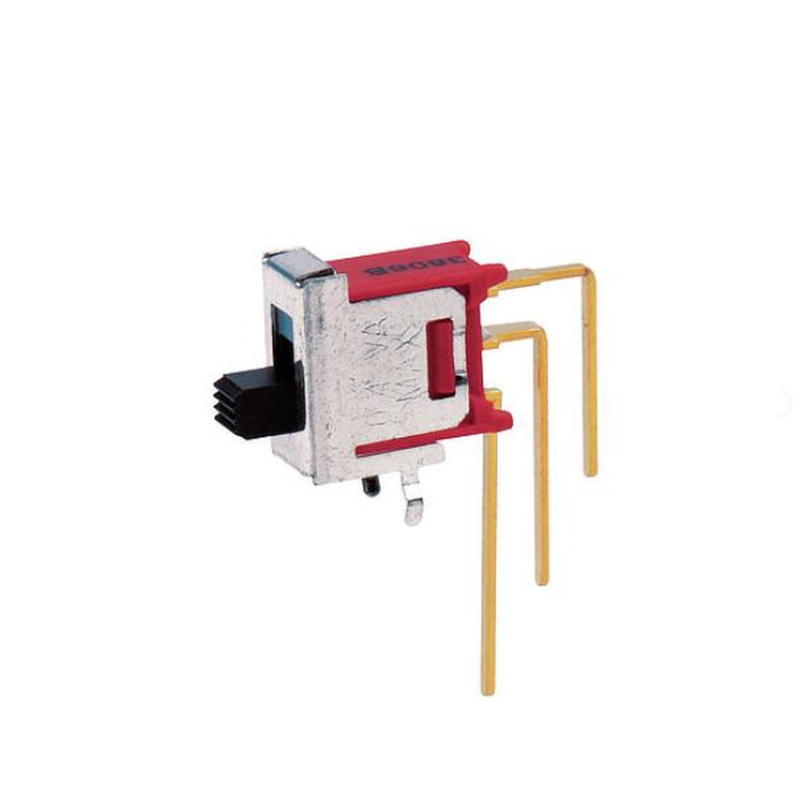

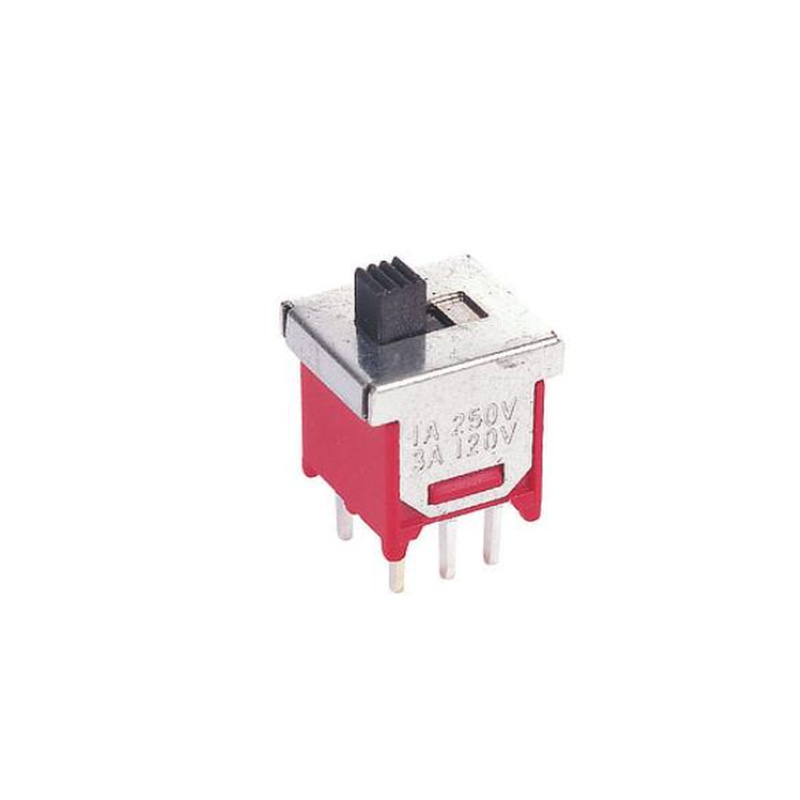

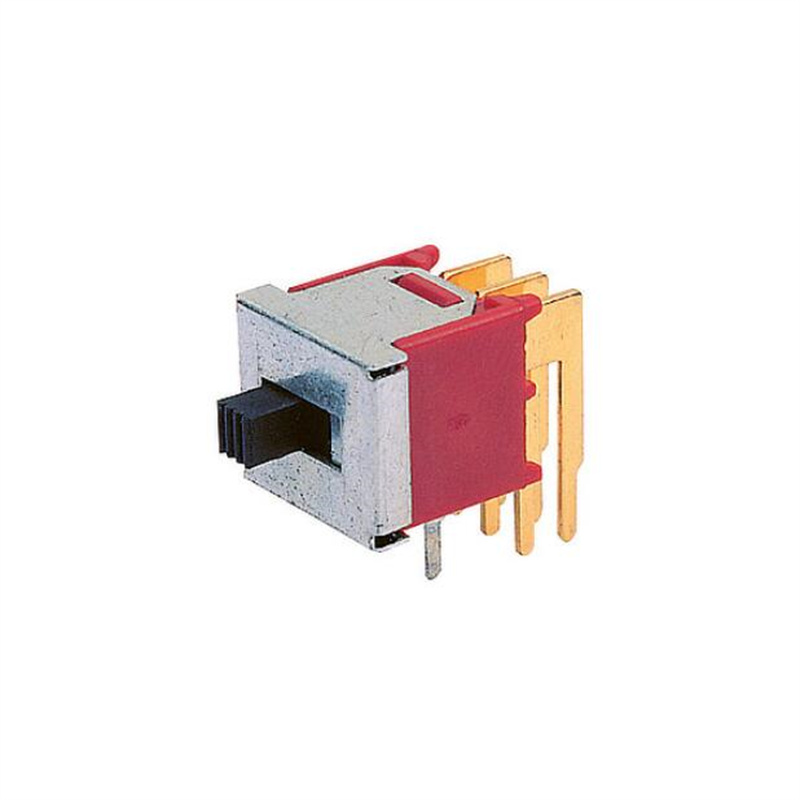

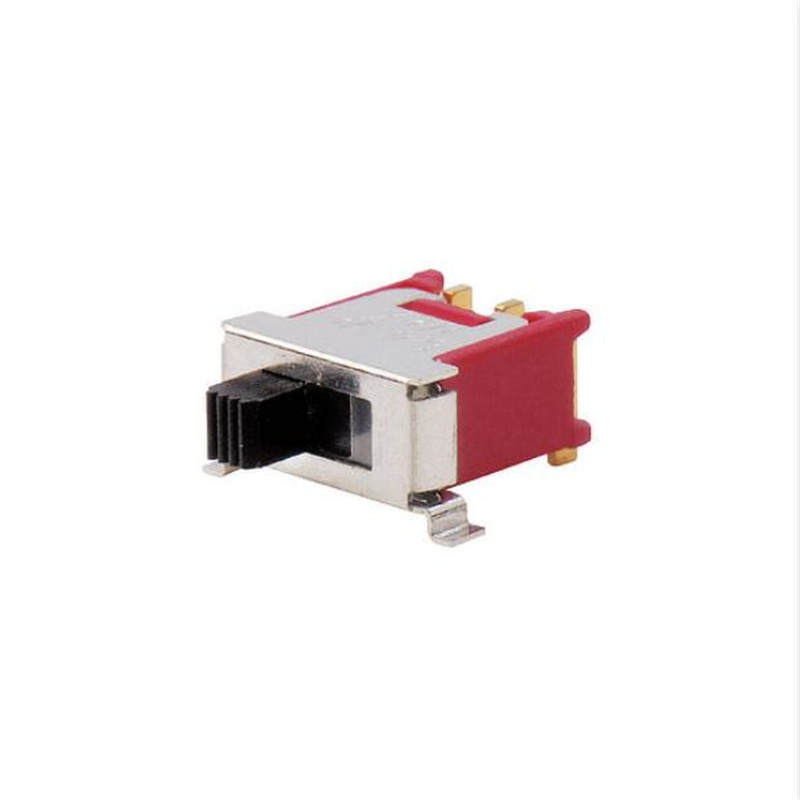

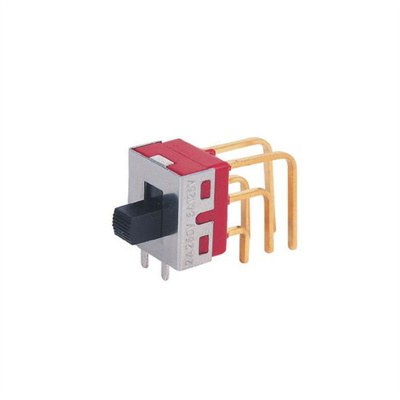

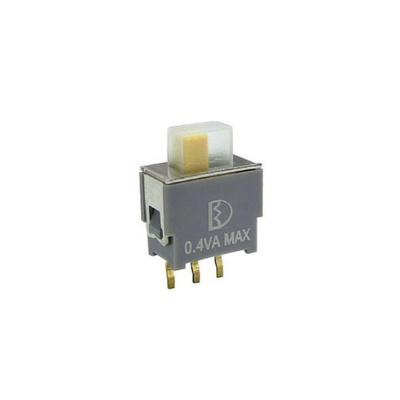

5F系列強化型滑動開關，最高RATING可以使用到3A，有SPDT、DPDT等規(guī)格，柄長有3.1mm及5.0mm可以選擇使用，端子腳有PC腳、加長端子腳、彎腳及SMT腳
CONTACT RATING: Dependent upon contact material.
MECHANICAL LIFE: 30, 000 make-and-break cycles.
CONTACT RESISTANCE: 10 mΩmax. initial @ 2-4VDC, 100mA for both silver and gold plated contacts.
INSULATION RESISTANCE: 1, 000 MΩmin.
DIELECTRIC STRENGTH: 1, 000 Vrms min.@ sea level.
OPERATING TEMPERATURE: -40°C to 85°C.
測試和測量設備。
電腦及其周邊。
電信和網(wǎng)通設備。
 |
